Информация за продукта

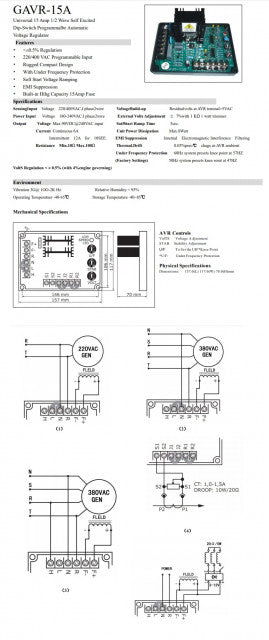

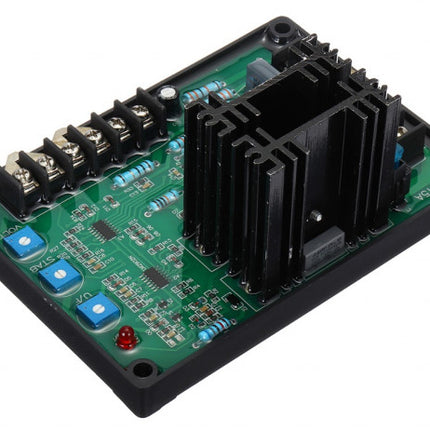

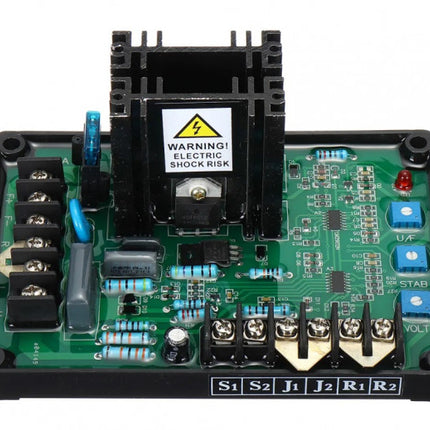

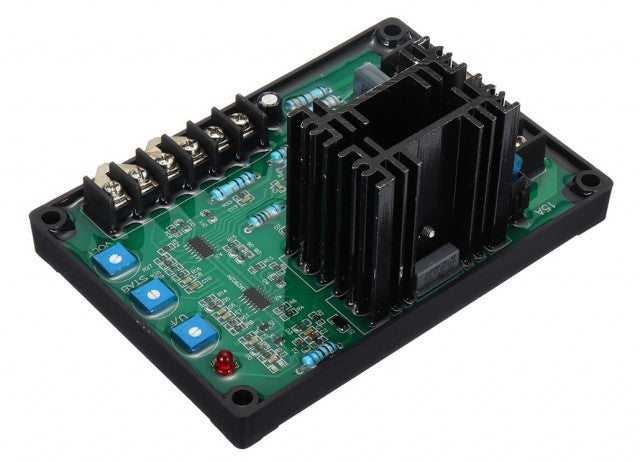

AVR генератор model 15 Ампера
Технически спецификации:
● Model: GAVR-15A
● Input Voltage: 180~240V AC 50/60Hz
● Output Voltage: Max 90V DC
● Unit Power Dissipation: Max. 8W
● Voltage Build-up: Residual volts at AVR teminal >5V AC
● Current: Max 12A for 10s
● Resistance: 10~100 ohms
● Soft Start Ramp Time: 3 seconds
● Thermal Drift: 0.05% per ℃ change in AVR ambient
● External Volts Adjustment: ± 7%with 1K Ω 1 watt trimmer
● Regulation: +/-0.5% RMS with 4% engine governing
● Operating Temperature: -40°C to + 65°C
● Storage Temperature: -40°C to + 85°C
● Relative Humidity:<95%
● Under Frequency:
60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz
